Portable Waste Tanks
Large ablution block but no sewer connection? The Temporary Waste Tank is the hygienic, long-lasting solution.
The Portable Waste Tanks is an engineering-certified effluent tank, designed to sit underneath large ablution blocks – particularly on large construction sites without a sewer connection (or perhaps a special event or an army camp).
A sturdy, durable, rust-construction, the 6000L Mobile Waste Tank is engineered from rigid polyethylene surrounded by a heavy-duty steel frame, and it’s rated to support a building mass of up to 7000kg plus 12 persons.
Available in three different sizes (2000L, 4000L & 6000L), the Portable Waste Tanks are suited to ablution block buildings up to approximately 6m long and 2.4m wide. The 2000L is available in a frame and without a frame.
Portable Waste Tanks Features & Specifications:
- Heavy duty steel frame
- Special gusset reinforcing
- Engineer Certified No. E3577
- 6000L Portable Waste Tanks are certified to withstand 7000kg + 12 People
- 3 sizes to suit all applications
- Long-life polyethylene tanks will not rust
- Special locator tab/lift points
- Steel tow hook on all sizes
- Tank top connects to frame to avoid sagging
- Special double clamped triple wall connector hose on multi-tank models
- Special pump out port available
- Individual 2000 Litre Pods and linking kits are available to create your own tanks without a frame.
| 2000L TANK | 4000L TANK | 6000L TANK |
|
Waste Tank: 2000 Litres |
Waste Tank:
4000 Litres |
Waste Tank:
6000 Litres |
|
Approx Weight: 227 KG |
Approx Weight:
453 KG |
Approx Weight:
776 KG |
|
Dimensions: 1950mm length x 2400mm width x 660mm height |
Dimensions: 3875mm length x 2400mm width x 660mm height |
Dimensions: 5860mm length x 2400mm width x 660mm height |
| Carrying Capacity:
1500 kg + 6 People |
Carrying Capacity:
5000 kg + 8 People |
Carrying Capacity:
7000 kg + 12 People |
VIEW MERLIN WASTE TANK BROCHURE PORTABLE TOILET BUYING GUIDE
OTHER PRODUCTS related to this item
Merlin Ultra
The Ultra has long been recognized as the best, most modern and longest lasting portable toilet on the Australian market today.
Merlin Executive
The base model is a lighter weight toilet than the Merlin Ultra, but is able to be optioned up to the individual customers ,requirements.

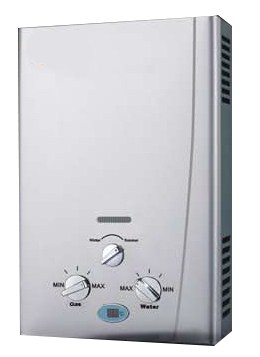

eco hot water
